PSU MS CORE M850G
Šifra proizvoda: MSC20015

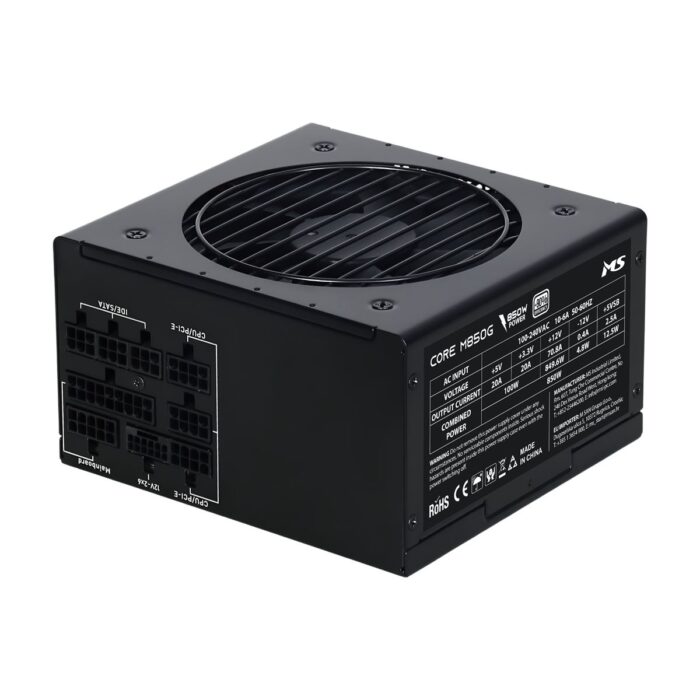

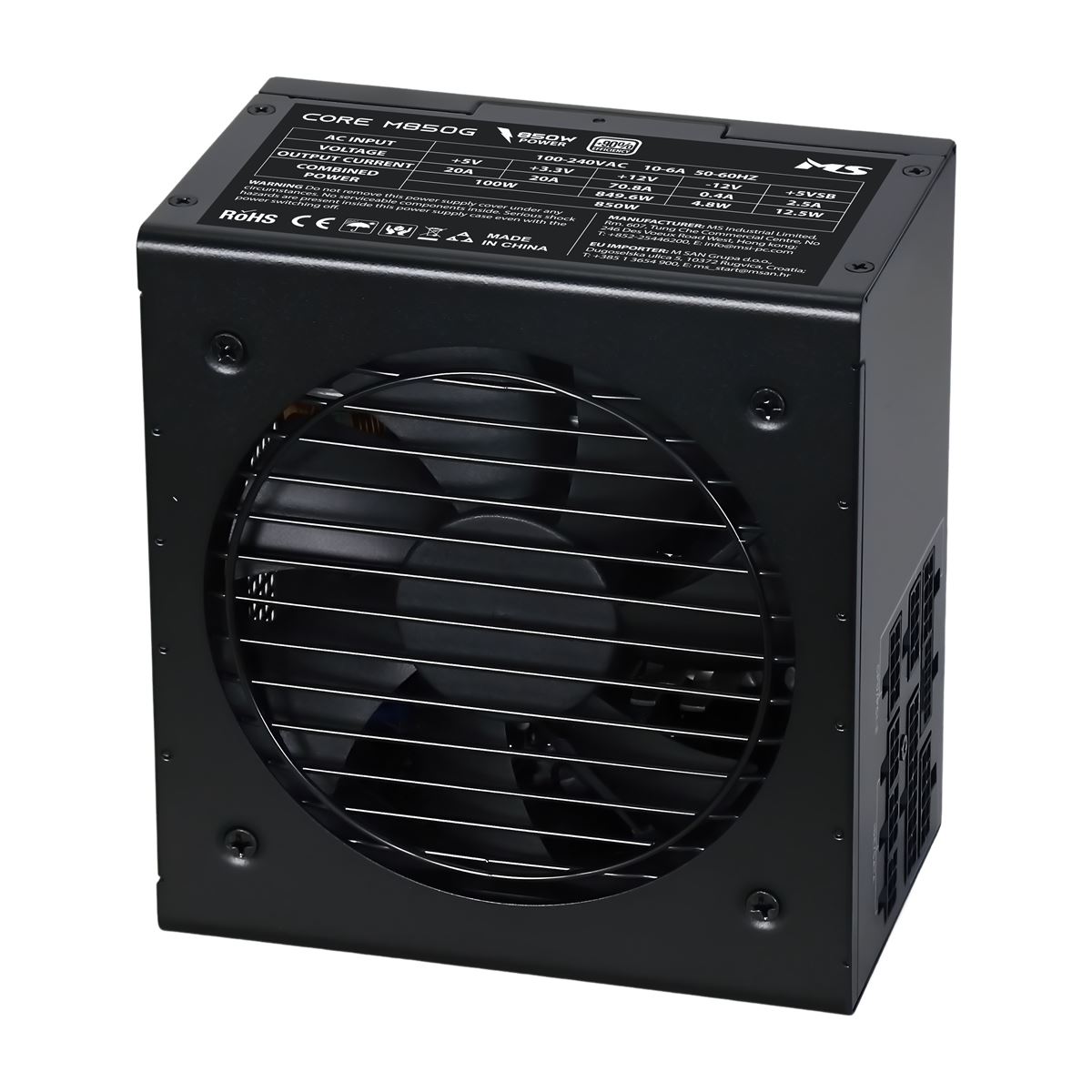

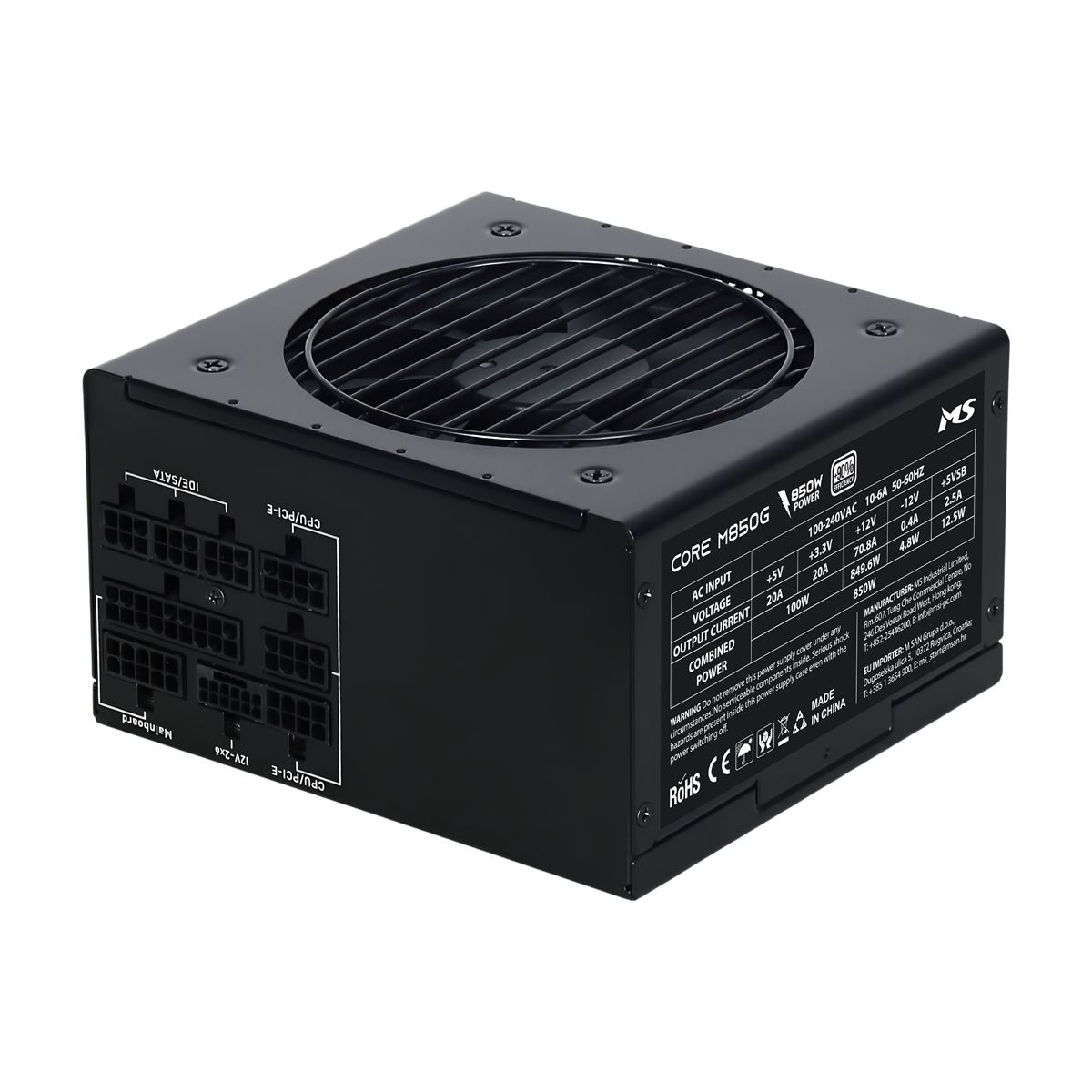

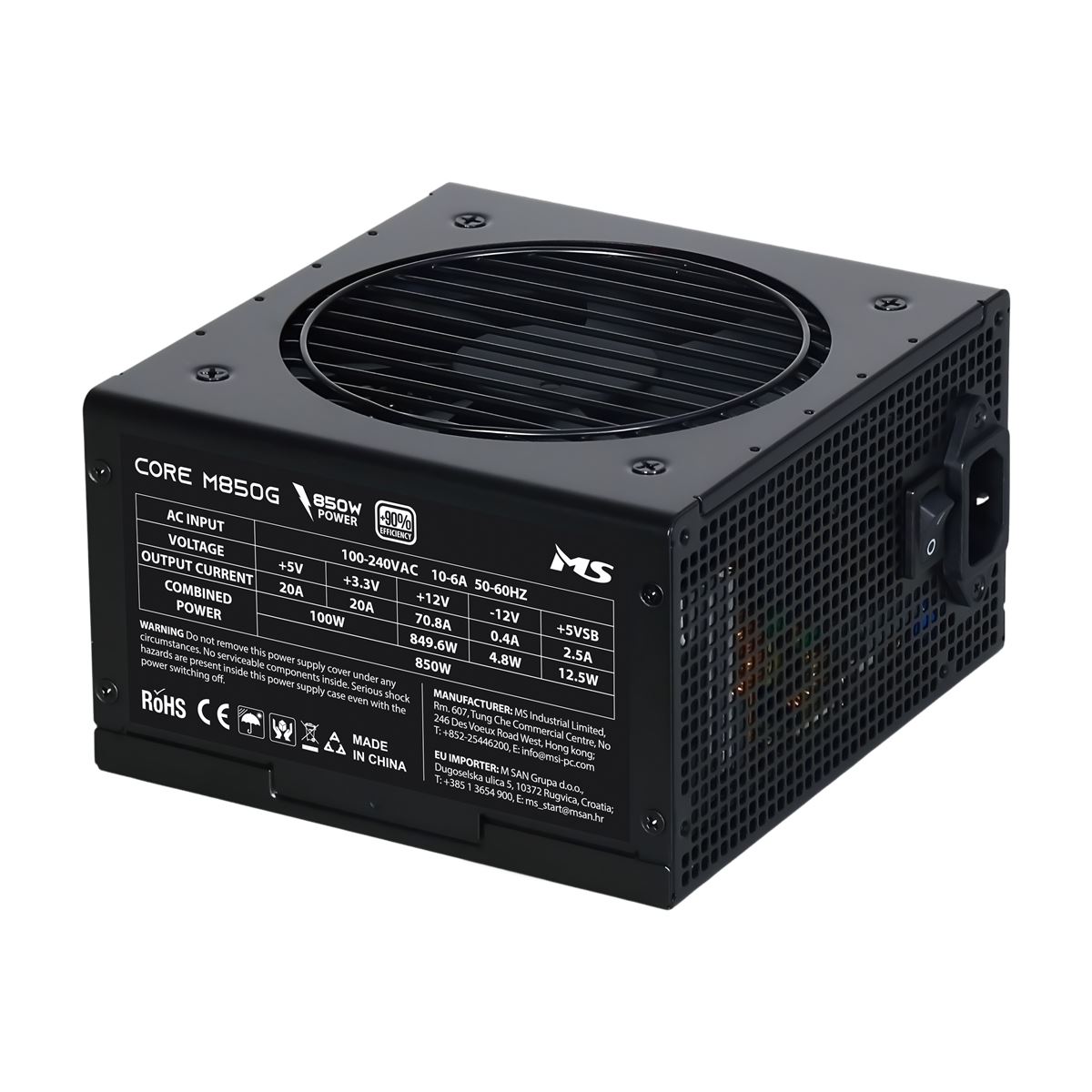

MS CORE M850G is an 850W ATX 12V power supply designed to provide stable, reliable and efficient power for modern high-performance PC systems. It features active PFC, up to 90% efficiency and a 120 mm cooling fan for effective thermal management. The fully modular cable design allows for improved cable management and easier installation, while...
Opis proizvoda
MS CORE M850G is an 850W ATX 12V power supply designed to provide stable, reliable and efficient power for modern high-performance PC systems. It features active PFC, up to 90% efficiency and a 120 mm cooling fan for effective thermal management. The fully modular cable design allows for improved cable management and easier installation, while the PCIe 5.1 12+4-pin connector supports modern graphics cards. With 2x 6+2-pin PCIe, 6x SATA and 2x Molex connectors, it offers flexible connectivity for a wide range of components. Multiple protection systems, including OVP, UVP, OCP, SCP, OPP and SIP, help protect the system and ensure reliable operation.
Tehničke specifikacije
| Power |
850 W |
| Form Factor |
ATX 12V |
| PFC |
Active |
| PFC Cooling |

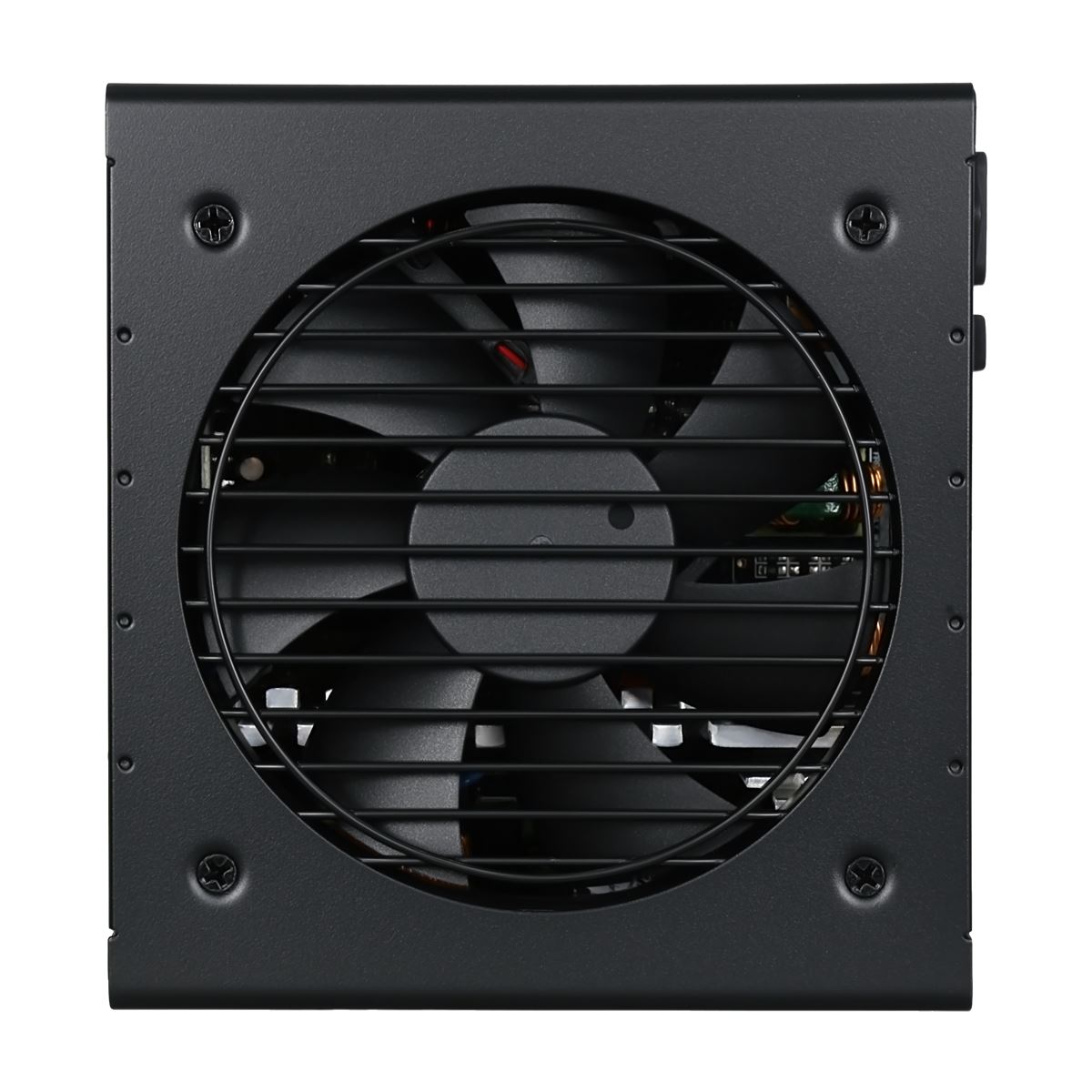

120 mm fan |
| Efficiency |
Up to 90% |
| Input Voltage |
100–240 V |
| AC Frequency |
50–60 Hz |
| Main Connector |
20+4-pin ATX, 1x |
| CPU Connector |
4+4-pin, 1x |
| PCIe Connectors |
6+2-pin, 2x |
| PCIe 5.1 Connector |
12+4-pin, 1x |
| 12VHPWR |
1x |
| SATA Connectors |
6x |
| Molex Connectors |
2x |
| FDD Connector |
0x |
| Cable Type |
Fully modular |
| Protection |
OVP, UVP, SCP, OPP, OCP, SIP |
| Fan Size |
120 mm Dimensions (H × W × D): 85 × 150 × 140 mm |
| Certifications |
CE, RoHS |
| Warranty |
60 months |
